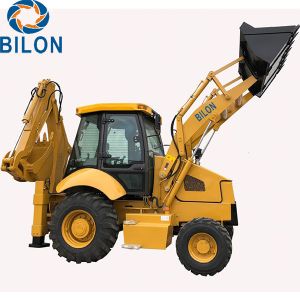

    1.5 - 3 Ton Backhoe Loader With 1m3 Front Load Bucket Capacity

    1.5Ton,3Ton Chinese Mini Backhoe Loader


    The machine is of compact structure and logical layout. With beautiful apearance and design of

    components embody hommization adequately.

    - The performance has achieved advanced level in China. Using domestic famous brand hydraulic

    system and imported transmission system for loader.

    - The professional designed operation system as well as reasonable layout realies comfortable,

    convenient and labor-saving operation, the steering axle with big swing angle and steering angle.

    - It can be fixed with many accessories according to requirements!


    Main Parameter


    Operating Weight8200KG
    Overall Dimension (L*W*H)5920×2250×3770
    Wheel base2200mm
    Min. Ground Clearance300mm
    Bucket Capacity1.0m3
    Breakout Force38KN
    Loading lifting Capacity2500kg
    Bucket Dumping Height2742mm
    Bucket Dumping Distance925mm
    Digging Depth52mm
    Backhoe Capacity0.3 m3
    Max. Digging Depth4082/4500mm
    Swing Angle of Excavator Grab190o
    Max. Pulling Force39KN

    ENGINE


    ModelYuchaiYC4A105Z-T20
    TypeIn Line Direct injection Four-Stroke and Injection Combustion Chamber
    Cylinder-Inside Diameter-Stroke4-105*120
    Rated Power75KW
    Rated Speed2400r/min
    Min.Fuel Consumotion≤242g/km.h
    Max. Torque≥252N.M
    Displacement4.4L
